Peripherals

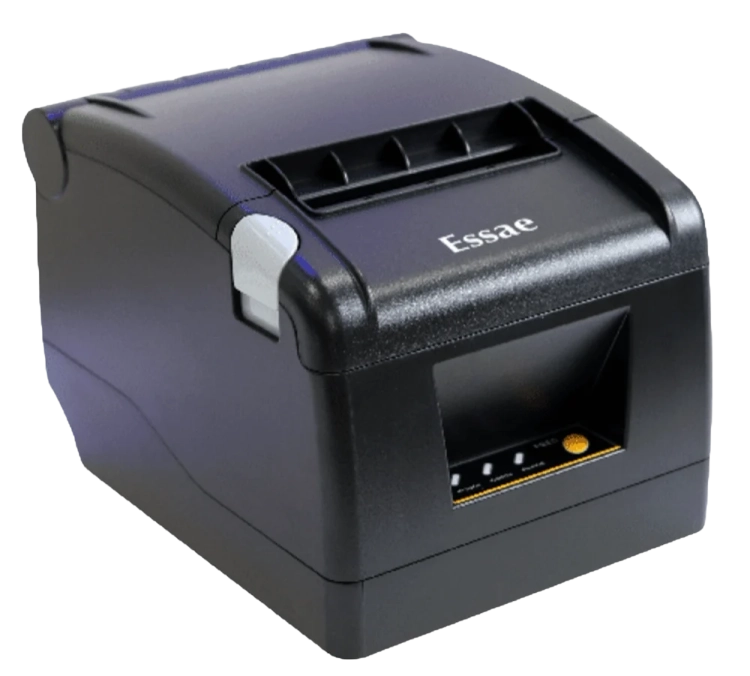

PR-65 POS Printer
|
Model
|
PR-65
|
|---|---|
|
Printing method |
Direct Thermal |
|
Priting speed |
220 mm / sec (max) |
|
Paper width |
79.5+ 0.5 mm |
|
Printer interface |
Serial, USB & Ethernet |
|
Cutter |
Full or Partial cut |
|
Reliability |
Printer head life : 100 km / Auto Cutter 1.5 Million cuts |
|
Power supply |
DC 24 V / 2.5 A |
|
Cash drawer interface |
RJ-11 Connector |
|
Software driver |
Windows drivers, ESC/POS, OPOS Driver, |
|
Barcode printing support |
QR code EAN-8, EAN-13, Code 39, Code 128, ITF UPC-A, UPC-E, Codabar |
|
Sensor |
Cover open, paper end |
|
Printer dimension (W x D x H) mm |
142 x 185 x 136 |
|
Printer Weight |
1.02 kg |
PR-55 POS Printer
|
Model
|
PR-55
|
|---|---|
|
Printing method |
Direct Thermal |
|
Priting speed |
200 mm / sec (max) |
|
Paper width |
79.5+ 0.5 mm |
|
Printer interface |
USB & Ethernet |
|
Cutter |
Partial cut |
|
Reliability |
Printer head life : 100 km / Auto Cutter 1 Million cuts |
|
Power supply |
DC 24 V / 1.5 A |
|
Cash drawer interface |
RJ-11 Connector |
|
Software driver |
Windows drivers, ESC/POS, OPOS Driver, |
|
Barcode printing support |
QR code EAN-8, EAN-13, Code 39, Code 128, ITF UPC-A, UPC-E, Codabar |
|
Sensor |
Paper end, Paper low, Cover open |
|
Printer dimension (W x D x H) mm |
145 x 123.5 x 121.6 |
|
Printer Weight |
1.35 kg |
HS-410A Cash Drawer
|
Model
|
HS-410A
|
|---|---|
|
Interface |
24 V DC/1 A, RJ-11 Connector |
|
MOC |
Body-Metal, Tray-ABS Plastic, Clip-Metal |
|
Tray |
5 bill, 8 Coin |
|
Security |
Lock & Key |
|
Dimension |
410 (W) x 405 (D) x 90 (H) mm |
|
Software driver |
ESC/POS, OPOS, JPOS (Windows 10) |

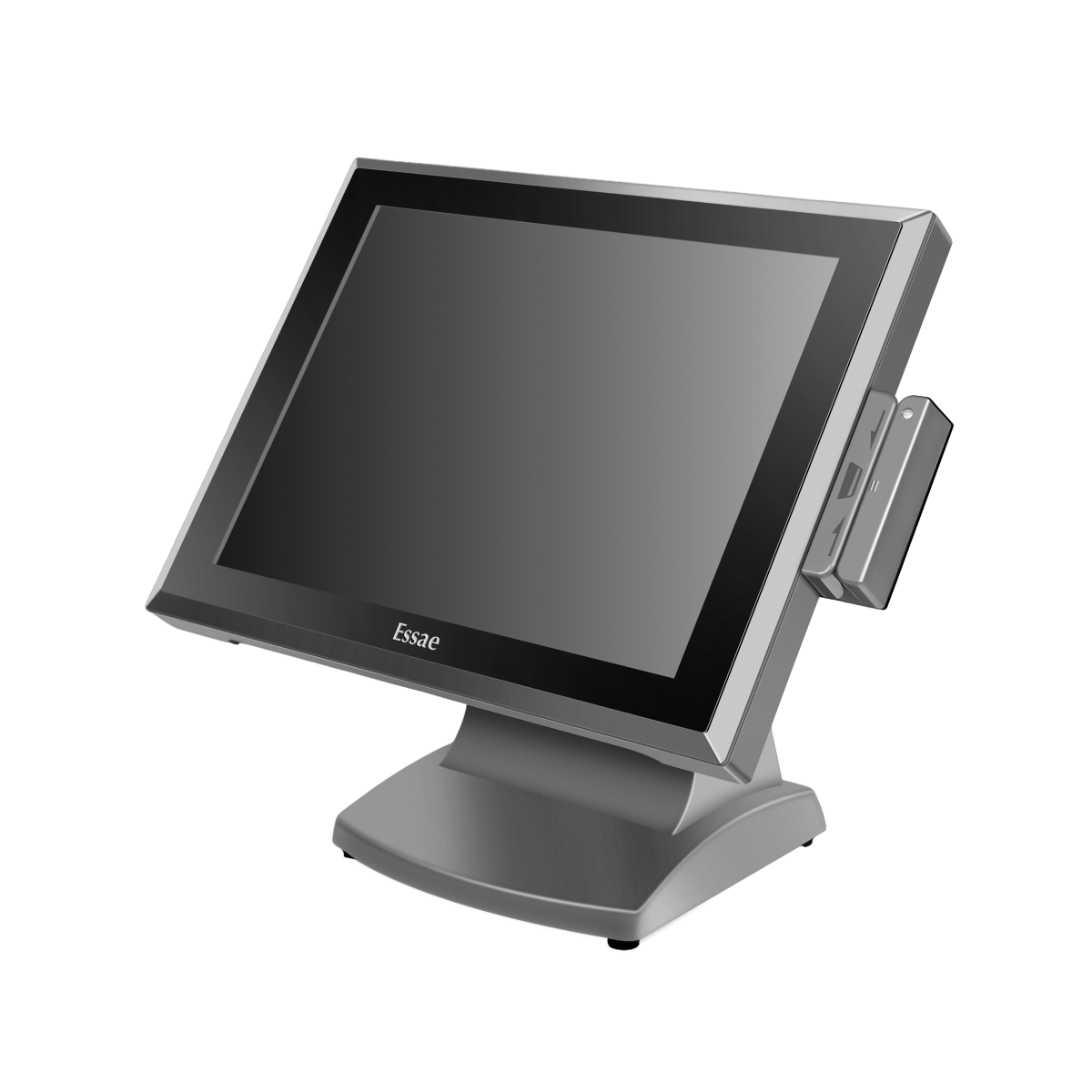

MSR
|
Model
|
MSR
|
|---|---|
|
Track Support |
3 Tracks (Track 1/2/3) |
|
Interface |
USB |
|
Swipe speed |
12.7cm to 139.7 cm (5 to 55") per sec, Bi-directional |
|
Head Life |
1,000,000 passes minimum |
|
Color |
Black |
|
Software driver
|
OPOS : Windows 10 |

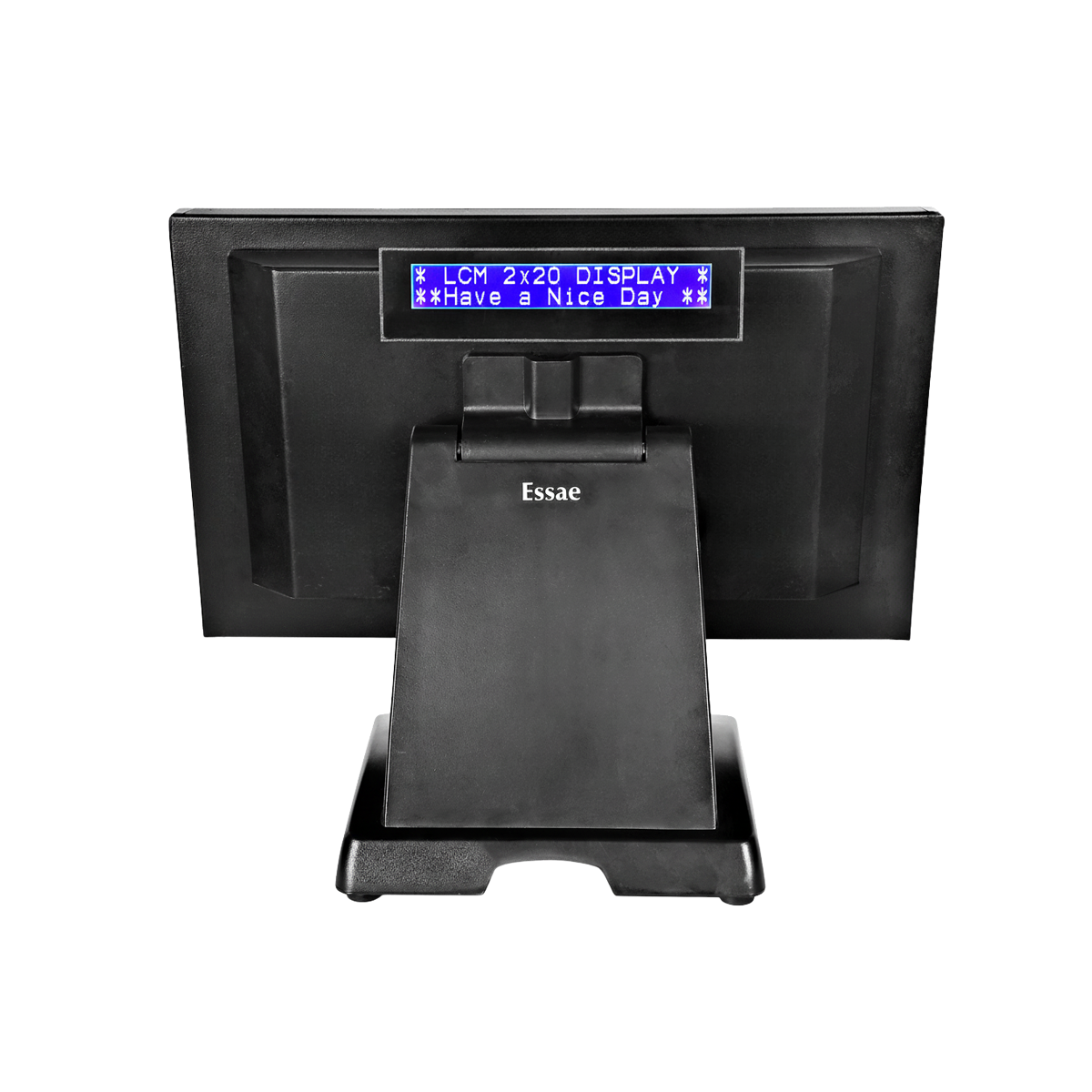

2x20 Line Customer display
|
Model
|
2x20 Line Customer display
|
|
|---|---|---|
|
Characters |
20 Characters x 2 Lines |
|
|
Display Type |
Graphic LCD with Blue backlight |
VFD Green display |
|
Brightness |
1000cd/m² |
700cd/m² |
|
Power |
DC 5V |
|
|
Interface |
USB |
|
|
Software driver |
OPOS / JPOS : Windows 10 |

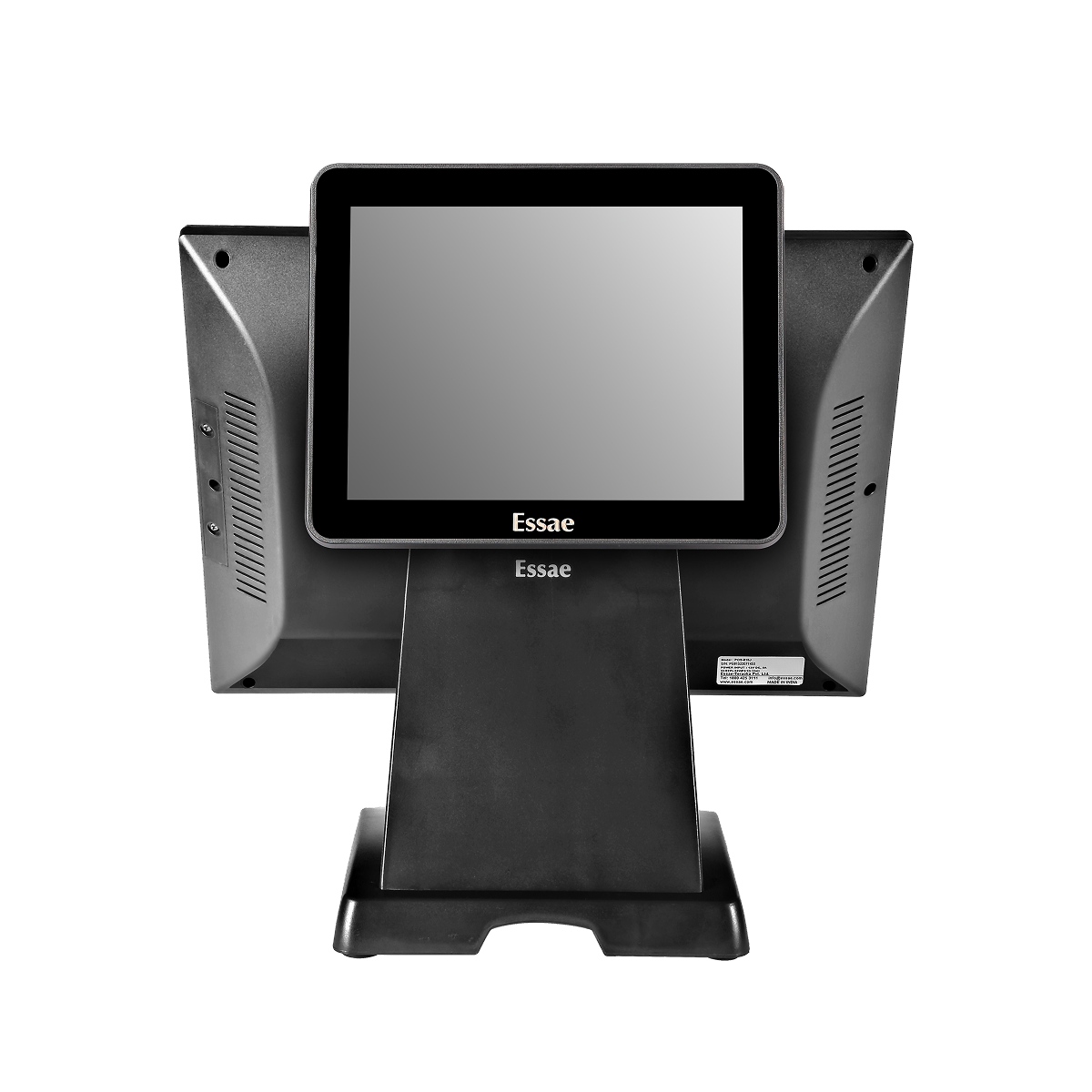

Second Display
|
Model
|
Second Display
|
|
|---|---|---|
|
LCD Type |
TFT LCD ( LED backlight) |
|
|
Display |
9.7 inch Non Touch |
10.1 inch Non Touch |
|
Resolution |
1024X768 |
1200X800 |
|
Brightness |
300 cd/m² |
|
|
Display Interface |
HDMI |
USB |
|
Display Input |
DC 12V |
DC 3.3V |
|
Color |
Black |
