AX Series Precision weighing balance - Image 2

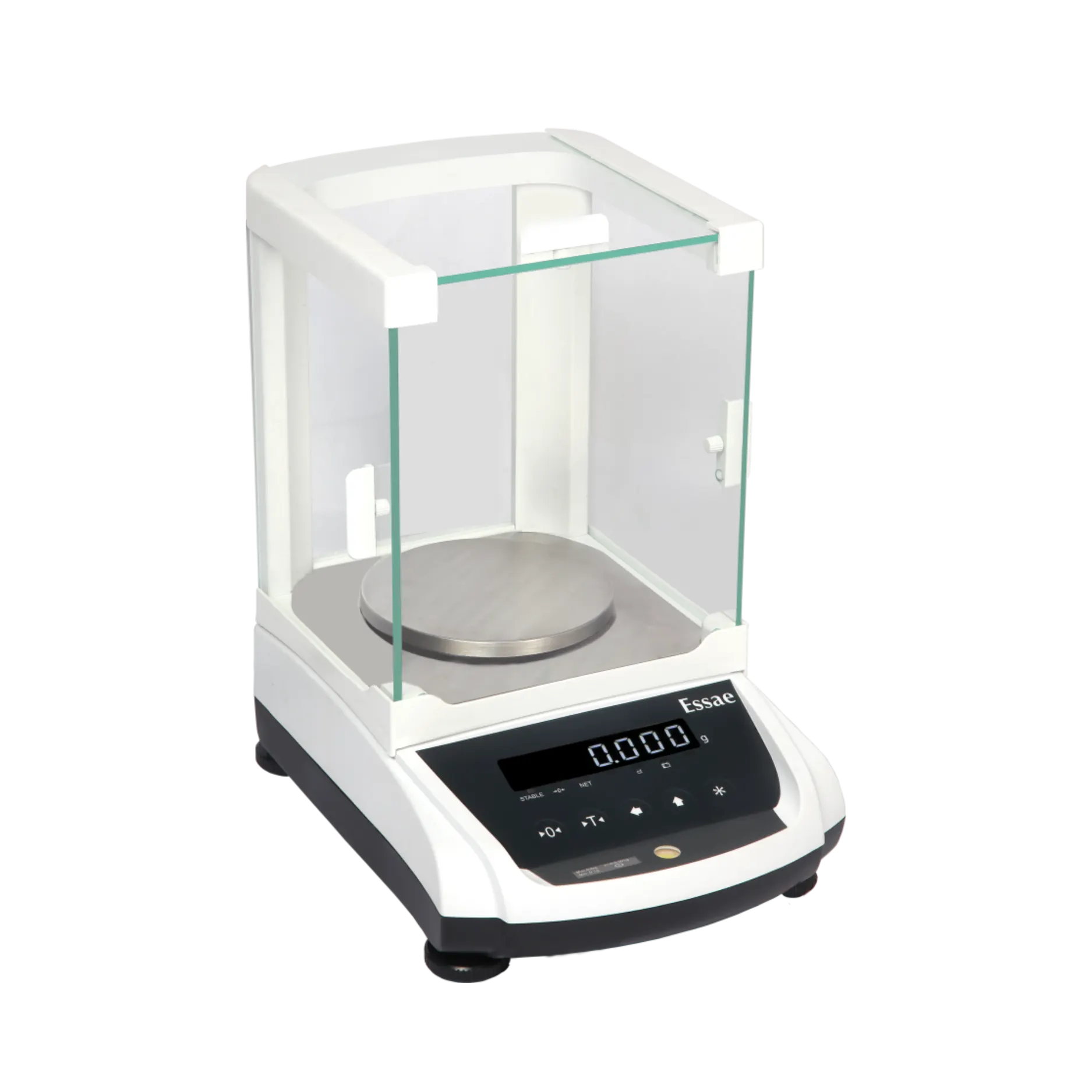

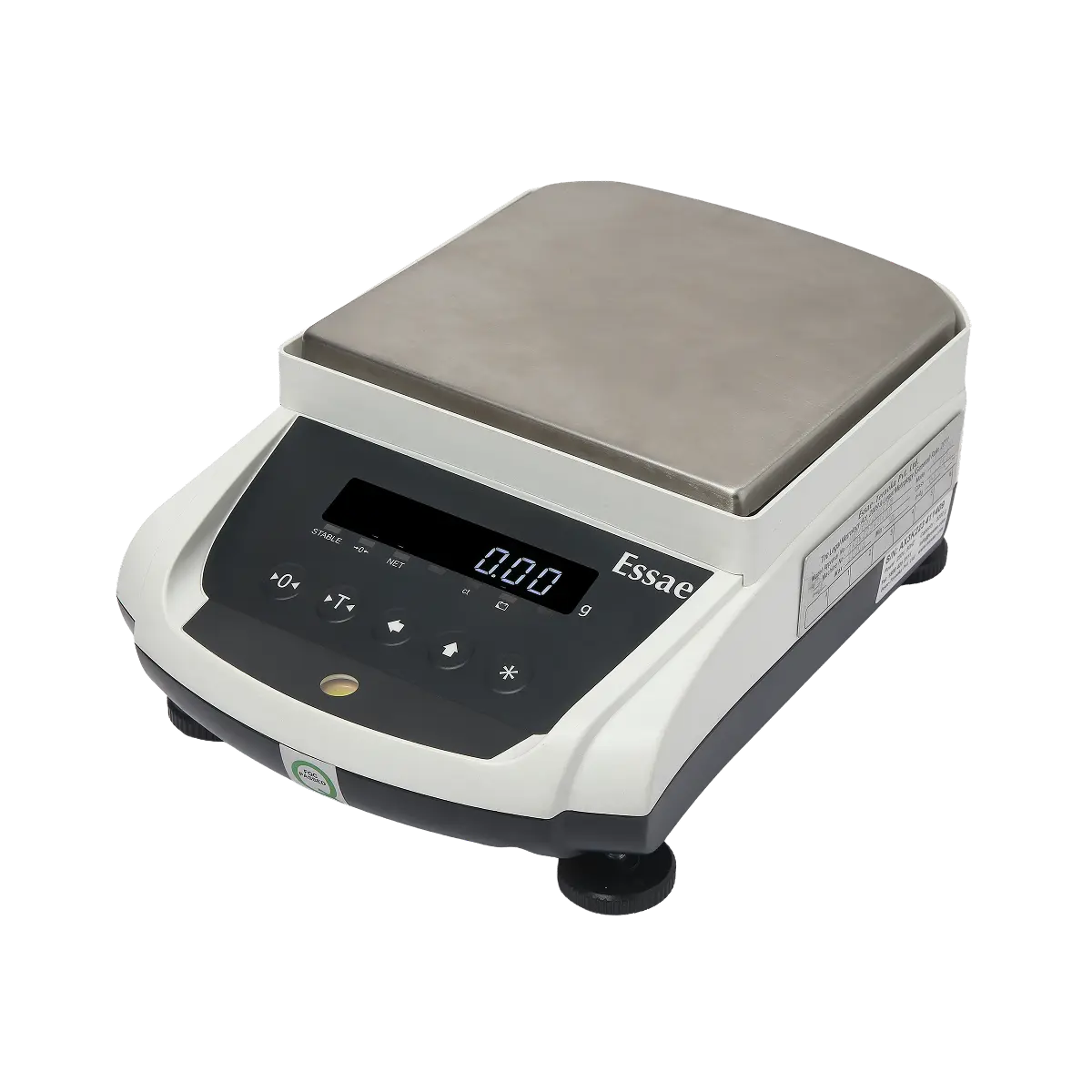

AX Series Precision weighing balance

Chemical Dairy Education Engineering Finance Food Processing Jewellery Pharmaceutical Textile

Product overview

Laboratory weighing machine for accurate results : The AX Series precision weighing balance is engineered for laboratories, research facilities, and quality control environments that demand uncompromising accuracy. Designed with advanced technology, these laboratory balances and scales deliver consistent performance, ensuring reliable measurements for analytical and industrial applications.

Technical specifications


Weight sensor	Electro Magnetic Force Restoration Technology (EMFRT)
Operating temperature	10°C to 40°C
Display	White LED, 14 mm [Height]
Power supply -AC/DC Adaptor	Input -230V AC, 50 Hz, +/-10% Output -9.5V DC, @1.2A Max Watt -11W
Battery (Option)	11 W adaptor with 7.4/2.2Ah lithium ion Battery
Standard feature	Standard serial Print: 80-column, 40-column, label print Selectable Serial print format RTC: Real time date printout. Record & Retrieve up to 1000 weight data RS-232 Interface
Calibration method	Software calibration (External Weight)
Tare Range	Full Capacity
Repeatability/Verification interval Lineariy	+/- 1d +/- 2d
Dimensions without draft shield, with platter (Width x Depth X Height)	190mm x 275mm x 96mm (Table top)
Gross weight (balance only)	2 to 2.3 Kg (table top)
Weighing Units	Grams (Default) Yarn,Hang,Roving,Sliver(Conversion Factors for Textile Segment)


Model number	AX-220	AX-320	AX-620
Maximum weighing capacity	220 g	320 g	620 g
Readability	0.001 g	0.001 g	0.001 g
Platter Size	2,20,000	3,20,000	6,20,000
Platter Size	Dia 110 mm
Draft Shield	Included


Model number	AX-1200	AX-2200	AX-3200
Maximum weighing capacity	1200 g	2200 g	3200 g
Readability	0.001 g	0.001 g	0.001 g
Display resolution	1,20,000	2,20,000	3,20,000
Platter Size	160mmX160mm

Benefits of the AX Series precision weighing balance

High precision measurement

Accuracy up to micrograms for analytical and QC labs

User friendly interface

Intuitive display and easy navigation for faster workflows.

Data connectivity

Supports printing and digital record keeping for compliance.

Durable construction

Robust design ensures long term stability in demanding lab conditions.

Energy efficient operation

Can function without direct power, offering flexibility in usage.

Why Choose Essae’s laboratory balances and scales

Verticals

Frequently asked questions

What makes the AX Series ideal for analytical and QC labs?

Its precision sensors and stable performance ensure reliable results, even in high compliance environments.

Does the AX Series support data printing and record keeping?

Yes, it offers connectivity options for printers and PCs, enabling seamless documentation.

Is external calibration required for this model?

The AX Series supports external calibration, ensuring flexibility and accuracy.

Can the balance operate without direct power?

Yes, it features battery backup for uninterrupted operation.

What capacities are available in the AX Series?

Multiple capacities are available, ranging from analytical microgram balances to higher capacity precision scales.
